DXD-300 Plus | Horizontal Wrapper Equipment

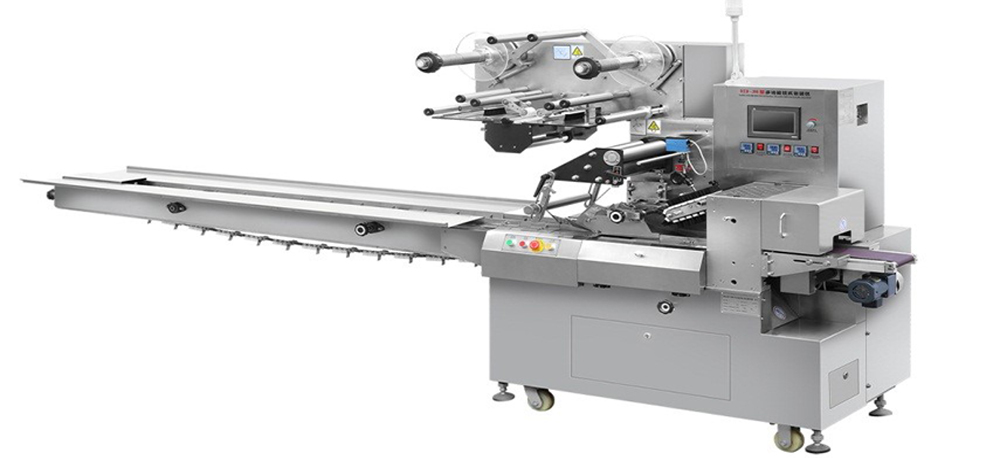

DXD-300 servo flow wrapper

Automatic feeding system solution (for reference only)

Compare with traditional DXD-300 wrapper, DXD-300 servo flow wrapper is controlled by servomotor, which brings stable convey belt speed, good package integrity and high productivity. In addition, The improved DXD-300 plus servo flow wrapper can realize the old and new film connection smoothly without stopping the machine, thus reduce the time of film replacement greatly improve efficiency. What’s more, DXD-300 plus adopts PLC touch screen, which makes operators easier to use. Therefore, the operation training is needless.

DXD-300 servo flow wrapper adopts up-film packing form. Varieties of composite films are available to package deckle-edge products and products with crumbs or burrs such as biscuit. Moreover, DXD-300 plus could package single or multiple products of various types including biscuit, chocolate, and cakes as well as cards, daily necessities, etc.

Technical Parameters

Max. Production Capacity		30-140bags/min(Single Cutter)	80-290(Double Cutter)	80-350(Three Cutter)
Shape of products		Square, rectangle, circular, ellipse and flake etc.
Packaging Range	Bag Length	170-400mm	80-300mm	Packaging Range
	Width	35-100mm	80-200mm	60-130mm
	Height	< 60mm	< 40mm	< 30mm
Max Width of Film		300mm
Max. Dia of Film		Ø350mm
Gross Power		3Kw
Power Supply		220V 50Hz
Gross Weight		900kg
Overall Dimension		4300×850×1550mm

Main Components

- Extends sealing time for stronger, more consistent end seals.
- Ensures stable sealing, cutting, and product discharge.
- Can be integrated with date coders, inspection systems, or cartoning machines.

Wenzhou Ruida Machinery Co. is a trustworthy source of horizontal flow wrappers and automatic packaging equipment founded in 1989. We apply our decades of accumulated production experience to satisfy the needs of our thousands of customers in various industries. We have provided packaging equipment for companies involved in the production of food, pharmaceuticals, hardware, and so on. Our products are sold throughout 31 provinces and cities in China and exported to other countries like Korea, America, Russia, as well as regions like Southeast Asia and the Middle East.
