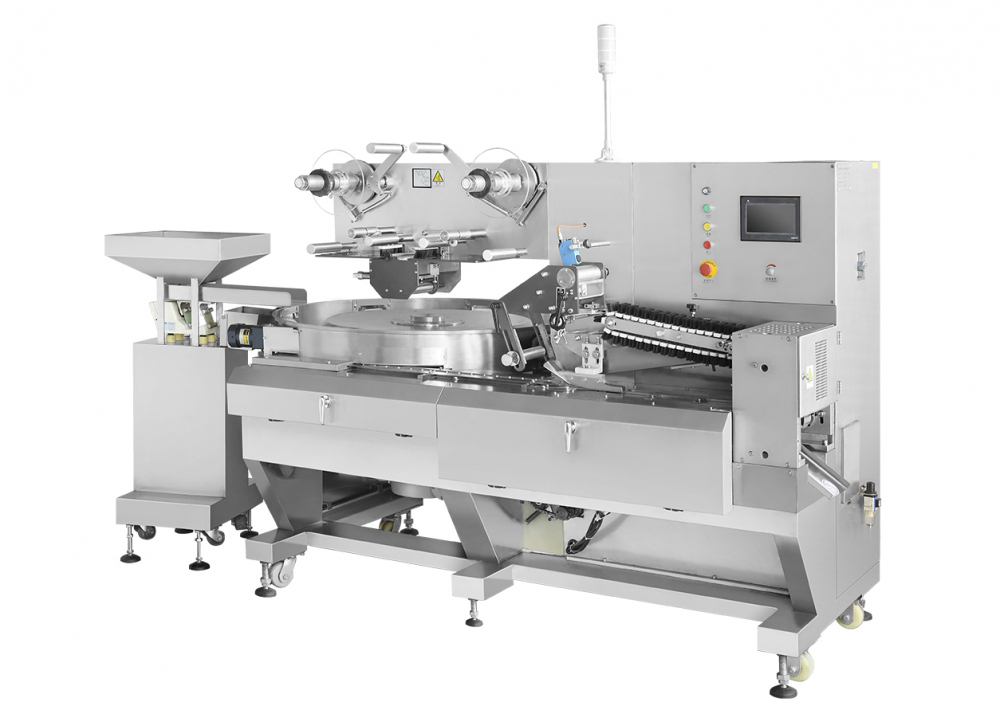

Flow Wrapping Machine, HFFS Wrapper, DXD-1600 Type Flow Pack Packaging Equipment

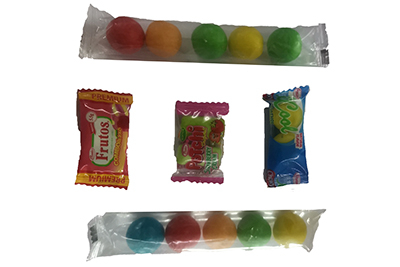

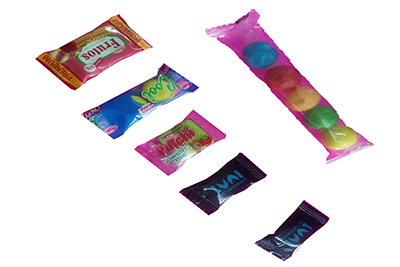

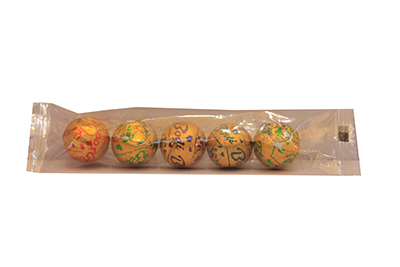

The DXD-1600 series flow pack packaging equipment is designed and manufactured for the packaging of small products such as candy, and more.

It is a kind of up-film packing HFFS wrapper, and it is also a flow-wrapping machine.

The automatic bowl feeder of DXD-1600 has a wide width of 1.2m, which makes the packaged products fall into the feeding device. Moreover, the DXD-1600 is equipped with six cutting heads so that it has a maximum packaging speed of 1400bags/min. Compared with the DXD-1200, the DXD-1600 has a lower empty bag rate, better quality and material utilization.

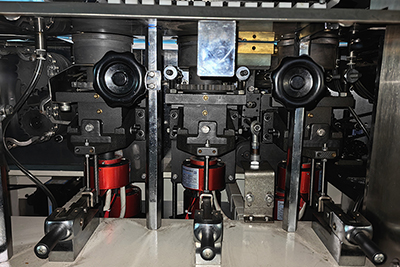

The vertical sealing device of the DXD-1600 is equipped with a traction wheel and one heat welding wheel, which can guarantee high preheat speed and the integrity of packaged products and maximizes the yield.

Feature

The automatic bowl feeder is suitable for the packaging of multiple small products.
Equipped with an infrared sensor, inspecting the packaging process at any moment to guarantee the integrity of the packaging
Automatic film gusseting device, to achieve nonstop film.
Equipped with rotating cutting head. The cutting operation and packaging operation proceed simultaneously, which improve production efficiency significantly.

Technical Parameters

Production Capacity	1400bags/min
Shape of Candy	Square, Ellipse, Oblate,, Globular, ,Plum Blossom-Shaped
Packing Range	Length	12-50mm
	Width	12-30mm
	Height	5-18mm
Length of Finished Bag	50-150mm
Gross power	6kw
Power supply	380v 50HZ 3P/AC
Gross weight	1500kg
Overall dimensions (mm)	370016501700
Packing Material	OPP/CPP/PET/Al-plastic film/ Paper-rubber complex

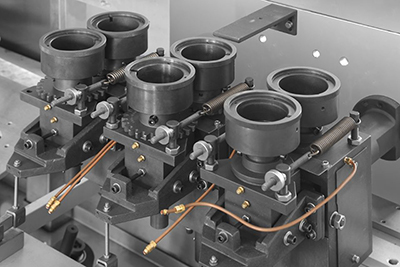

Main Components

- Designed for high-speed, high-volume packaging lines.
- Handles larger packages, wider films, and multi-layer films with stable sealing performance.
- Suitable for snacks, bakery products, multipacks, and other large-packaging applications.

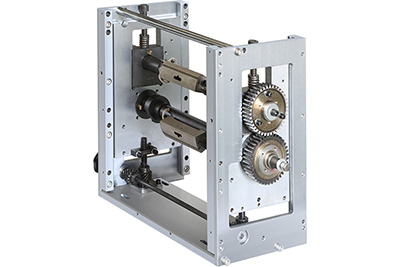

- Produces uniform longitudinal seals for thicker or multi-layer films.
- Supports continuous high-throughput operation with improved sealing stability and fewer adjustments.
- Reduces downtime and maintenance, lowering long-term costs.
- Suitable for chocolate, confectionery, bakery products, and other delicate food items.

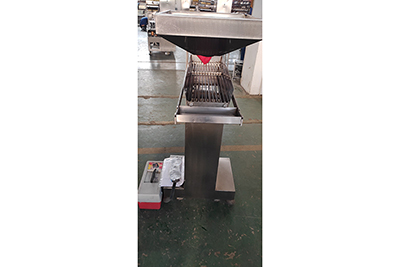

- Maintains steady and even product flow before wrapping.
- Improves feeding accuracy, reduces material waste, and lowers downtime in automated packaging lines.
- Suitable for food, confectionery, pharmaceutical, hardware, electronics, and products that require controlled feeding before packaging.

Optional devices

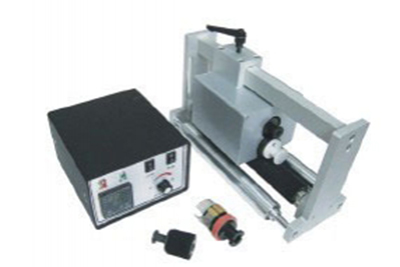

Date coder
Product distribution systems
