Automatic Flow Packing Machine Integrated with auto feeder

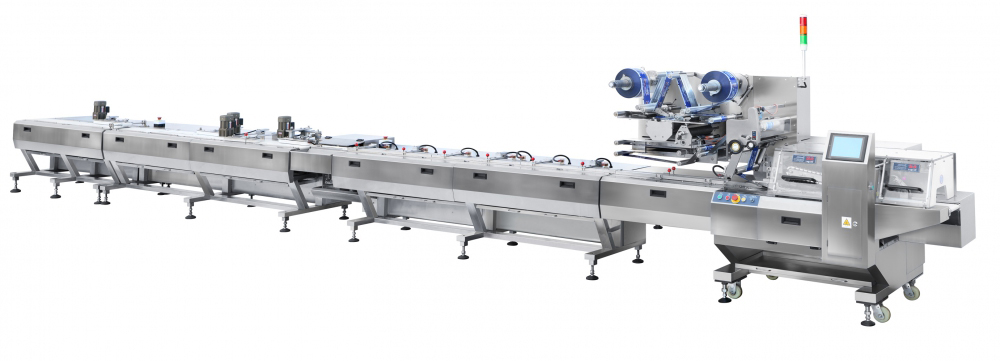

The DXD-660 automatic horizontal flow packing machine is designed for coated products such as chocolate, wafer biscuits, cakes, and more.

The DXD-660 automatic flow packing machine comes with an integrated with auto feeder that can accomplish a series of production processes. The packaging process will begin after discharging is finished, which can efficiently reduce the empty bag rate.

The DXD-660 is designed for the packing of products with a coating.

The maximum production capacity of the DXD-660 can reach 800 bags/min. This machine adopts touch screen and plc control, which makes operation of machine even easier. Then it adopts full servo drive, which provide the stable transportation, accurate speed control and low empty bag rate.

Feature

Three vertical heat welding provides more stable heat output and stronger air tightness.
High speed, low empty bag rate and stable packaging process.
The whole machine is made of food grade stainless steel #304, which is easy to clean.
The machine has device for film auto-splice, which makes process of packing more smoothly and improves the packaging efficiency.
The conveyor belt structure is easy to disassemble.
Automatic packaging arrangement device reduces labor costs.
The packaging machine can effectively reduce the empty bag rate by the function of automatic acceleration and deceleration.
Full servo drive and plc control, which makes operation of machine even easier.
The contact parts of food and machine are made of food grade materials.
Empty product blower
Defect removal system

Technical Parameters

Max. Production Capacity	800bags/min
Packaging Range	Length of Bag	55-200mm
	Width	15-60mm
	Height	5-30mm
Max. Dia of Film	Ø390mm
Max Width of Film	300mm
Gross Power	9.6Kw
Power Supply	380V 50Hz
Gross Weight	1600kg
Overall Dimensio	980010001700mm

Main Components

- Designed for high-speed, high-volume packaging lines.
- Handles larger packages, wider films, and multi-layer films with stable sealing performance.
- Suitable for snacks, bakery products, multipacks, and other large-packaging applications.

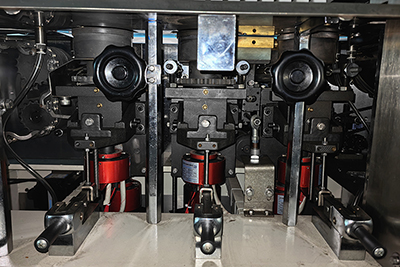

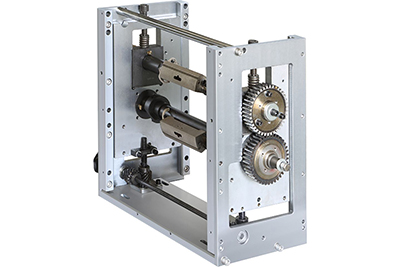

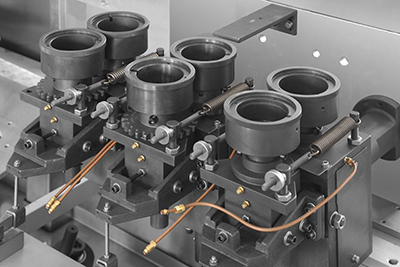

- Produces uniform longitudinal seals for thicker or multi-layer films.
- Supports continuous high-throughput operation with improved sealing stability and fewer adjustments.
- Reduces downtime and maintenance, lowering long-term costs.
- Suitable for chocolate, confectionery, bakery products, and other delicate food items.

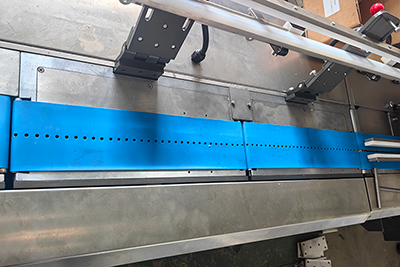

- The perforated conveyor belt works with the air suction system to hold products in position during conveying. This helps improve product stability during high-speed operation.

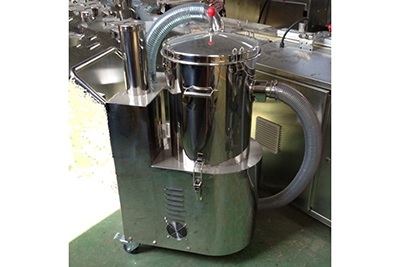

- The air suction duct directs airflow through the perforated conveyor belt to stabilize product positioning during transport. Used together with the perforated belt, it helps improve conveying accuracy and packaging stability.

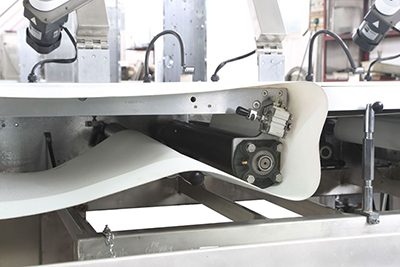

- The quick-release conveyor belt allows faster belt replacement and easier maintenance, helping reduce service time and improve daily operation efficiency.

Optional devices

Water-cooling system
Outlet conveyor (can lengthen)
Gas packing
Automatic rectification device
