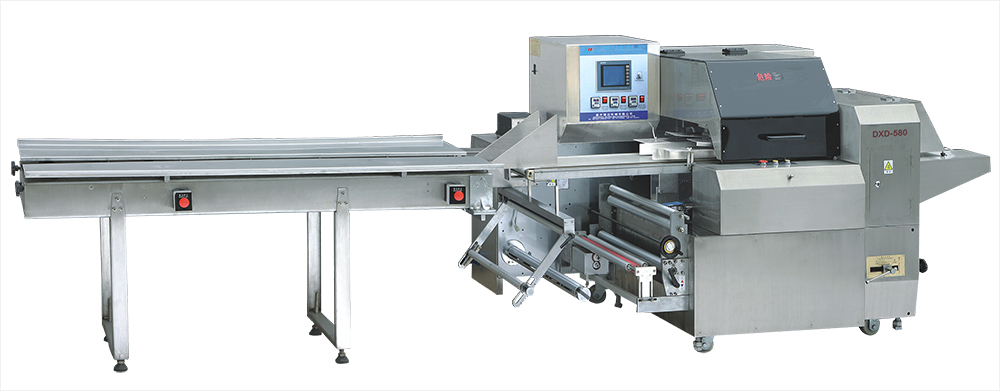

    Horizontal Flow Wrapper, DXD-580 Series Flow Pack Wrapping Equipment

    Inquiry

    The DXD-580 Horizontal Wrapper Equipment is specially designed for solid products such as hamburgers, instant noodles, bread, and more.

    DXD-580(DXD-580 series flow pack wrapping equipment is a high efficiency and multi-functional horizontal flow pack wrapper. The packing method of low film packing is suitable for the packaging of piece parts, goods with water and irregular products.

    DXD-580
    Feature
    • Suitable for the packaging of large irregular products.
    • Low film packing machines. The film covers the products from bottom to the top, this packing method can prevent water from leaking out from the pack bag and avoid the small and loose parts from falling.
    • The low film packing machines has better air tightness. It can avoid the appearance of tearing and air leakage.
    • Equipped with automatic inspection device. The length of packing bag can be adjusted in the packaging process.

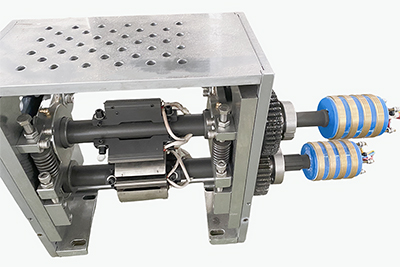

    • Equipped with rotating cutting head. The cutting operation and packaging operation proceed simultaneously, which improve production efficiency obviously.
    • Angle folder to make the appearance of the packaged product more beautiful.
    • Human-machine interface. Easy to operate.
    Technical Parameters
    Production capacity 10-45Pcs/min(Single knife) 20-90Pcs/min(double knife)
    Shaped packaging Various shapes
    Range of packaging Bag length 240-600mm 130-280mm
    Width 80-200mm 80-200mm
    Height < 110mm < 80mm
    Maximum width of packing film 600mm
    Maximum diameter of packaging film Ф300mm
    Total power 3.3kw
    Power supply 220v50-60HZ
    Total weight 900kg
    Dimensions 1800-4100*1300*1450mm
    DXD-580
    Optional devices

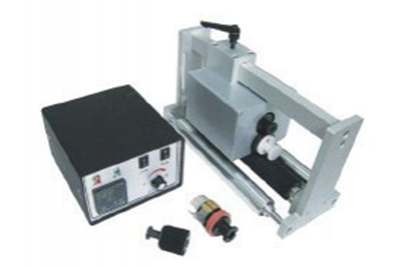

    • Date coder
    • Air pump
    • Angle folder
    Wenzhou Ruida Machinery Co. is a trustworthy source of horizontal flow wrappers and automatic packaging equipment founded in 1989. We apply our decades of accumulated production experience to satisfy the needs of our thousands of customers in various industries. We have provided packaging equipment for companies involved in the production of food, pharmaceuticals, hardware, and so on. Our products are sold throughout 31 provinces and cities in China and exported to other countries like Korea, America, Russia, as well as regions like Southeast Asia and the Middle East.
