    Flow Pack (HFFS) - DXD-300/420 Flow Wrapper

    Inquiry

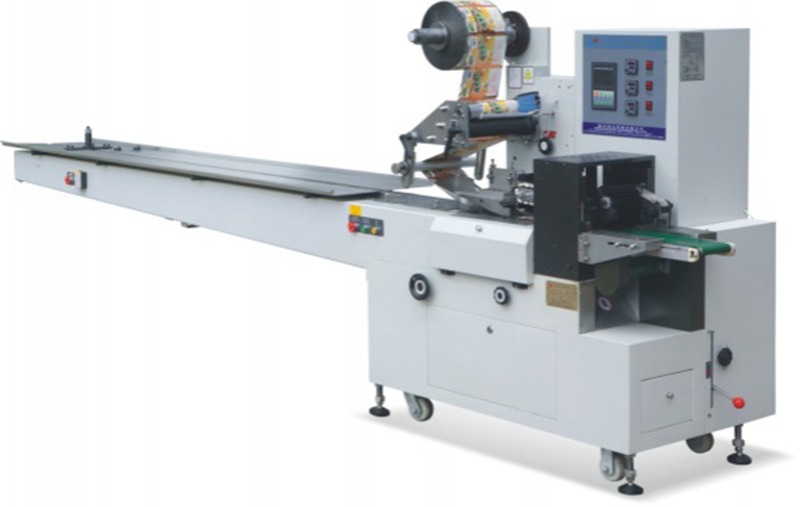

    DXD-300 Flow Wrapper(Mask Packing Machine)
    • DXD-300/420
    • DXD-300/420

    Our DXD-300 flow wrappers are packaging machines designed for multiple products such as biscuits, chocolate, ice cream, and more.

    The DXD-300 flow wrapper is an economical,  multi-functional (HFFS) horizontal flow wrapper carrying out the processes of cutting and packaging. It features the advantages of a compact machine body and low cost.

    The DXD-300 adopts an up-film packing method. It can package single or multiple products of various types using a variety of composite film types.

    The machine adopts a PC control screen, which makes operation extremely simple. Therefore, operational training is not necessary. In addition, the adaptation of mechanical transmission presents low maintenance requirements.

    The body of DXD-300 is made of carbon steel, which ensures stable high-speed operation and high productivity.

    DXD-420

    The structure of the DXD-420 flow wrapper is the as that of the DXD-300, but the processing film width can reach 420mm. Customers can select the angle folder according their individual needs. The maximum production speed can reach 200bags/min.

    DXD-580
    Features
    • Biscuit trap, which is suitable for biscuit packs.
    • Automatic film gusseting device can reduce the replace film time and empty machine time.
    • The graduation on the conveyor belt helps measure the packaging size and ensures it meets the needs of customers.
    • The heat-resisting wire of the heat-sealing device provides fast heating speed, which ensures good pack airtightness.
    • Small size machine can adapt to various plant conditions
    Technical Parameters
    DXD300
    DXD-300/420
    Max. Production Capacity 30-140bags/min(Single Cutter) 80-290(Double Cutter) 80-350(Three Cutter)
    Shape of products Square, rectangle, circular, ellipse and flake etc.
    Packaging Range Bag Length 170-400mm 80-300mm Packaging Range
    Width 35-100mm
    Height < 60mm < 40mm
    Max Width of Film 300mm
    Max. Dia of Film Ø350mm
    Gross Power 3kw
    Power Supply 220V 50Hz
    Gross Weight 900kg
    Overall Dimension 4300×850×1550mm
    DXD420
    Max Production Capacity 35-130bag/min 60-260bag/min
    Packing Range length(mm) 190-450mm 90-270mm
    Width(mm) 40-140mm 40-140mm
    Height(mm) < 80mm < 60mm
    Max. Width of film 420mm
    Gross power 3Kw
    Power supply 220V 50Hz
    Gross weight 950kg
    Overall diamensions 4200*1000*1550mm
    Optional devices

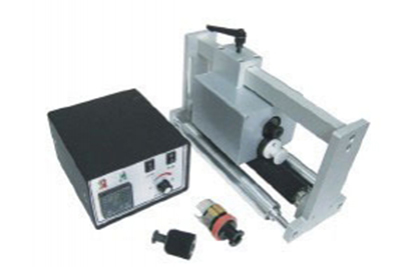

    • Date coder
    • Automatic biscuit trap
    • Angle folder
    Wenzhou Ruida Machinery Co. is a trustworthy source of horizontal flow wrappers and automatic packaging equipment founded in 1989. We apply our decades of accumulated production experience to satisfy the needs of our thousands of customers in various industries. We have provided packaging equipment for companies involved in the production of food, pharmaceuticals, hardware, and so on. Our products are sold throughout 31 provinces and cities in China and exported to other countries like Korea, America, Russia, as well as regions like Southeast Asia and the Middle East.
