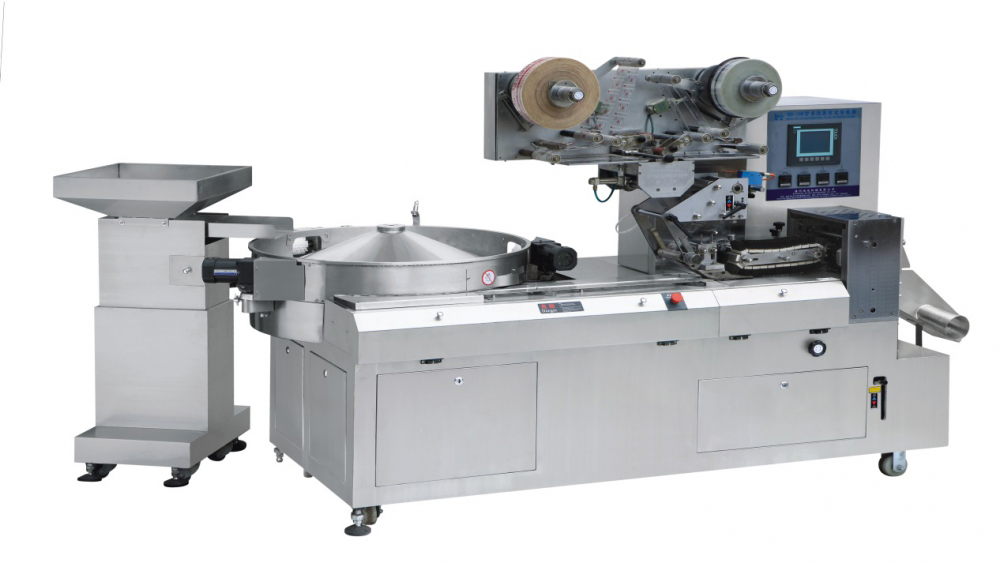

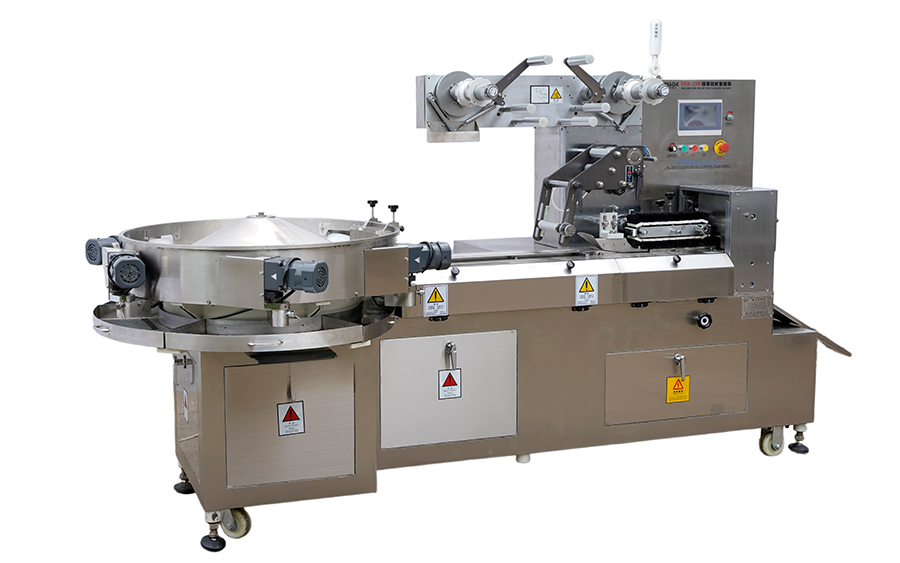

    Horizontal Flow Wrapper, HFFS Wrapping Machine, DXD-1200 Series Flow Pack Packaging Equipment

    Inquiry

    The DXD-1200 series flow pack packaging equipment is designed for packaging multiple small products in one package such as candy.

    DXD-1200 series flow pack packaging equipment is a kind of up-film packing (HFFS) horizontal flow wrapper. With a vibrating bowl feeder and bowl feeder, this machine is suitable for the packing of small regularly-shaped products.

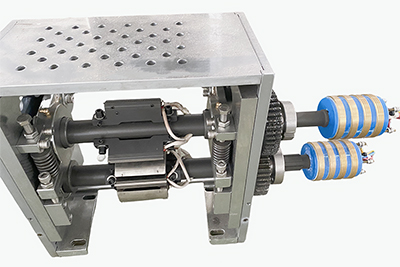

    It adopts a rotating cutting device with six cutting heads. The cutting operation and packaging operation are carried out simultaneously, which improves production efficiency significantly. The maximum packaging speed can reach 1000bags/min. 1-5 candies can be packed each time.

    The candy may fall or deviate direction in the packaging process. We provide empty product blowers to guarantee stable transportation and high yield.

    This machine can be equipped with an infrared sensor that can inspect the packaging process at any moment to guarantee the integrity of the packaging. This device can save pack film and reduce the idling rate.

    The vertical sealing device of the DXD-1200 is equipped with a traction wheel and one heat welding wheel, which can guarantee high preheat speed and the integrity of the packaged products, maximizing the yield.

    DXD-1200
    Feature
    • Automatically displays the fault alarm, security doors, and safety switch.
    • The product can be stored parameter menu, stores up to 100 products.
    • Full Chinese touch screen display the working status, operating instructions, fault display, production statistics, simple and intuitive.
    • Automatic film gusseting device, to achieve nonstop film.
    • Packing speed, air bag less packaging performance and stability. Available packages excluder devices.
    • Easy to replace machine parts design, machine design durable.
    • Low noise, using the belt drive.
    Technical Parameters
    Max. Production Capacity 1200bags/min
    Shape of products Square, ellipse ,Oblate , Globular, Plum Blossom-Shaped
    Packaging Range Length 12-40mm
    Width 12-30mm
    Height 5-18mm
    Length of Finished bag 50-80mm
    Gross Power 4 Kw
    Power Supply 220V 50Hz
    Gross Weight 1400kg
    Overall Dimension 2500×1350×1720mm
    Packing Material OPP/CPP/PET Metallized film, Al-plastic film, Paper-rubber complex
    Wenzhou Ruida Machinery Co. is a trustworthy source of horizontal flow wrappers and automatic packaging equipment founded in 1989. We apply our decades of accumulated production experience to satisfy the needs of our thousands of customers in various industries. We have provided packaging equipment for companies involved in the production of food, pharmaceuticals, hardware, and so on. Our products are sold throughout 31 provinces and cities in China and exported to other countries like Korea, America, Russia, as well as regions like Southeast Asia and the Middle East.
