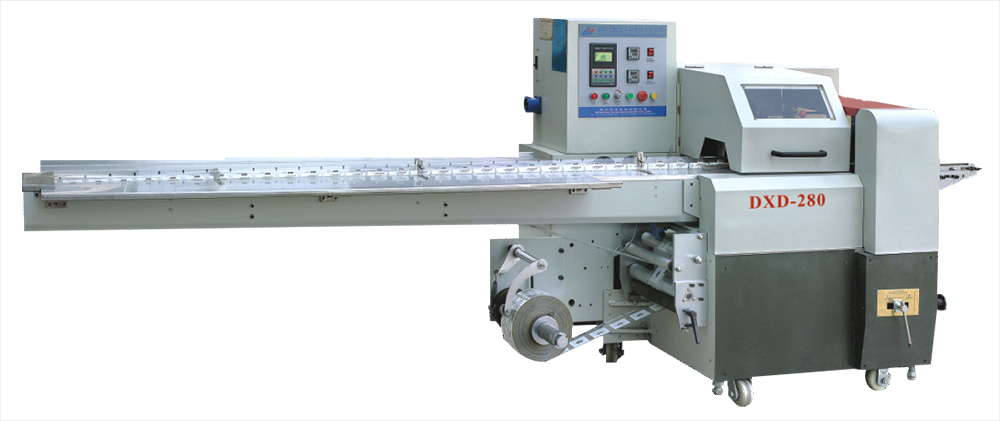

    DXD-280 Flow Wrapper, HFFS Wrapping Machine

    Inquiry

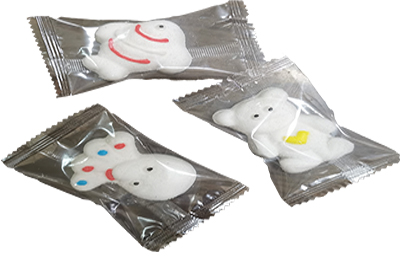

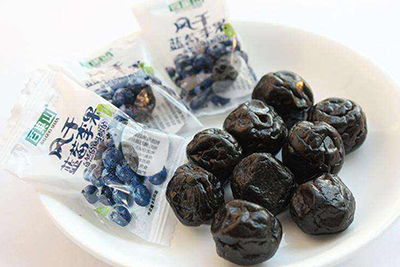

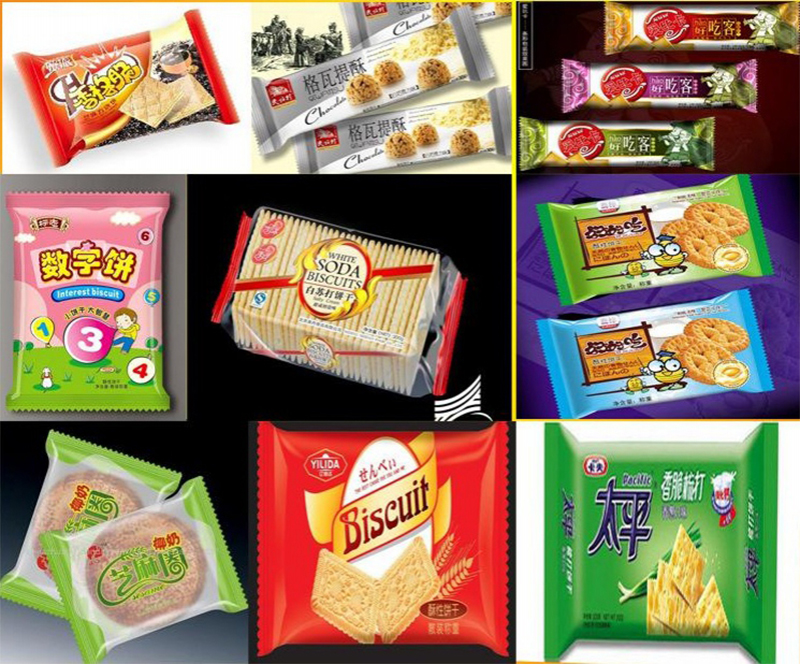

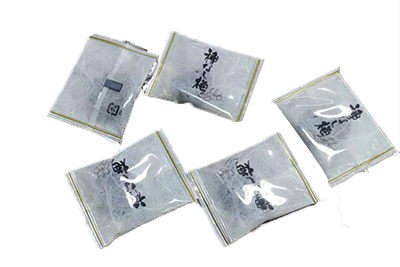

    Our DXD-280 flow wrappers are designed for the high efficiency packaging of solid products such as hamburgers, instant noodles, bread, mechanical parts, and more.

    The DXD-280 flow wrapper is the shrink version of the DXD-580. The maximum film width is 300mm. It is an economic multi-functional HFFS wrapping machine.

    Adopting the low film packing method, the DXD-280 flow wrapper is suitable for the packaging of piece parts, goods with water and other irregular products. The production capacity is 50-190 bags/min. The bag length is 150-450mm, and the width is 25-110mm.

    Feature
    • Low film packing machine. The film covers the products from bottom to the top, this packing method can prevent small and loose parts from falling.
    • The low film packing machines produce packages with better air tightness. It can avoid the attachment of foreign matter on the vertical sealing position, and then avoids air leakage or tears.
    • Equipped with an automatic inspection device. The length of the packing bag can be adjusted in the packaging process.
    • Equipped with a rotating cutting head. The cutting operation and packaging operation proceed simultaneously, which improves production efficiency greatly.
    Technical parameters
    Production capacity 50-190 bags/min
    Range of packaging Bag length 150-450mm 70-260mm 30-130mm
    Width 25-110mm 25-100mm 25-80mm
    Height < 50mm < 50mm < 50mm
    Maximum diameter of packaging film Ø350mm
    Maximum width of packing film 300mm
    Total power 3Kw
    Power supply 220V 50-60Hz
    Total weight 750kg
    Dimensions 3200-4700*1050*1450mm
    DXD-280
    Optional devices
    • Date coder
    • Air pump
    • Rotating head reverse function
