Flow Wrapping Machine Line

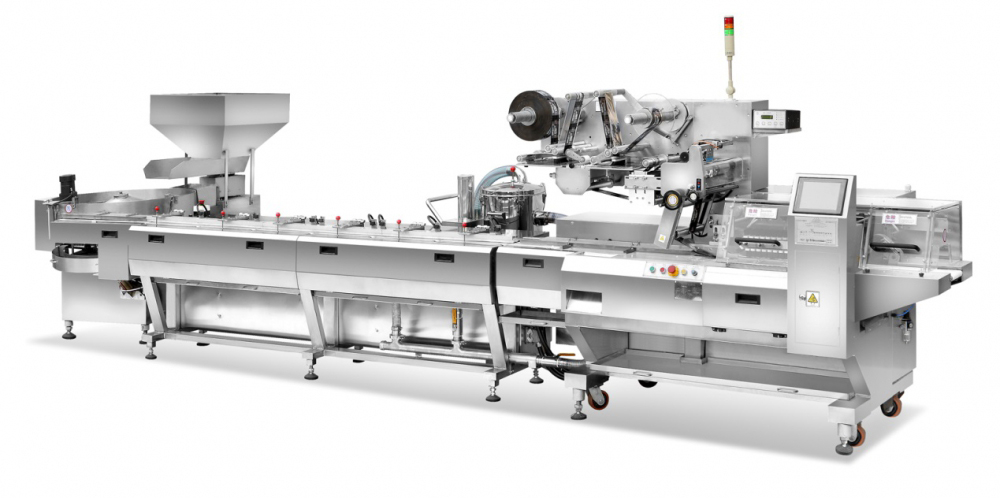

Automatic Horizontal Flow Wrapper Integrated with Auto Feeder
The DXD-660Z automatic horizontal flow wrapper was developed for the packaging of products with small pieces attached like sesame cakes, donuts, bagels, etc.
The DXD-660Z automatic horizontal flow wrapper is integrated with an auto feeder so that it can accomplish a series of production process. It is suitable for packaging food with attachments because it can prevent the pieces from falling off. The production efficiency of the DXD-660Z is higher than that of the DXD-300Z.
The maximum production capacity of the DXD-660Z can reach 660 bags per minute, which is twice the production capacity of the DXD-300Z. In addition, the maximum width of packaging film is 200mm
Feature
- The machine adopts fully automatic control and runs with low noise.
- The whole process of freeing, arranging, bag forming, filling and sealing is fully automatic.
- The machine adopts industrial touch screen, human-machine interface. It intuitively shows the parameter and has the menu operation, which makes operators easier to use.
- The machine has device for film auto-splice, which makes process of packing more smoothly.
- This machine adopts automatic detection and calibration, which makes the operation of packaging and cutting more precise.
- Unique design of the machine makes high-speed auto-packing of multi-piece bar products more efficient.
Technical Parameters
Max. Production Capacity | Max. Production Capacity | 660bag/min(it is changed with the size of product) |
Max Width of Film | 200mm |
Max. Dia of Film | Ø390mm |
Shape of products | Round bars |
Packing Range | Length of bag | 80-180mm |
Dia | 15~30mm |
Packing Material | PET/CPP and other heat-sealable materials PET/CPP and so on |
Gross Power | 7Kw |
Power Supply | 3P/380V/50Hz |
Overall Dimension | 6000×1300×1600mm |
Gross Weight | 1.5T |
Optional devices
- Vibrating plate or turntable (big turntable is default, small turntable is optional)

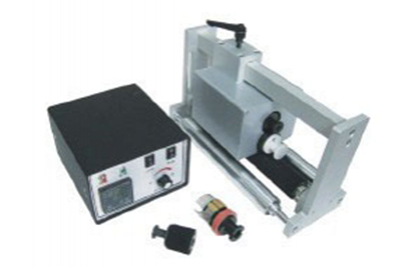

- Date Printer
- Inflatable devices
Wenzhou Ruida Machinery Co. is a trustworthy source of horizontal flow wrappers and automatic packaging equipment founded in 1989. We apply our decades of accumulated production experience to satisfy the needs of our thousands of customers in various industries. We have provided packaging equipment for companies involved in the production of food, pharmaceuticals, hardware, and so on. Our products are sold throughout 31 provinces and cities in China and exported to other countries like Korea, America, Russia, as well as regions like Southeast Asia and the Middle East.
